EVOLIFT

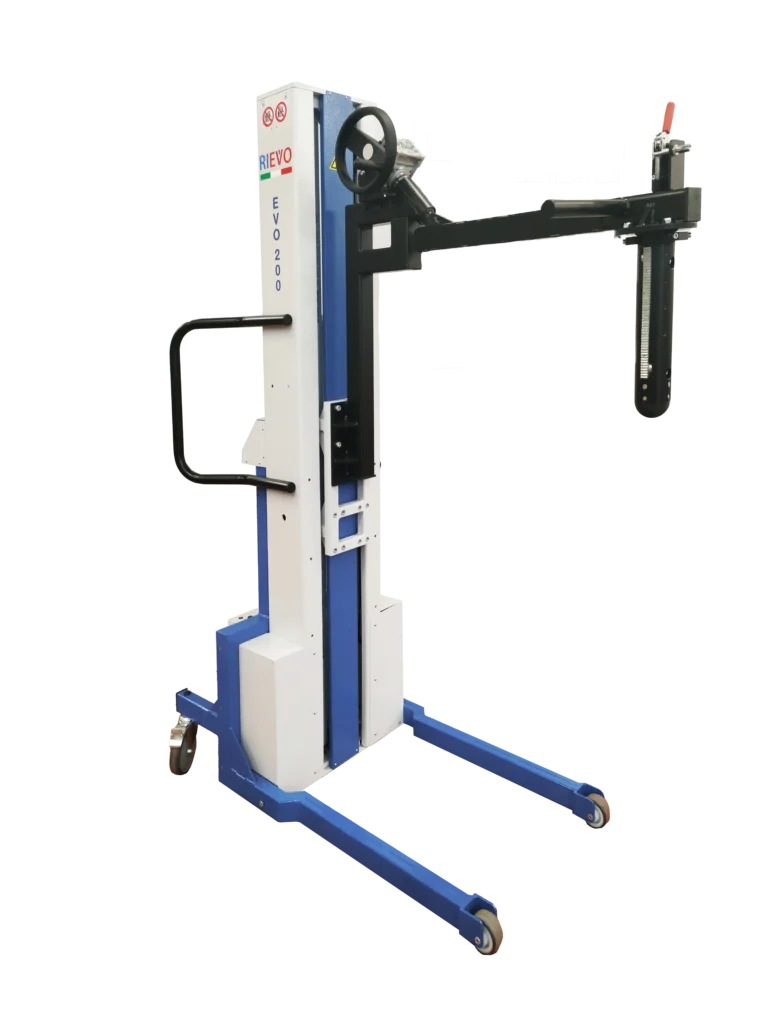

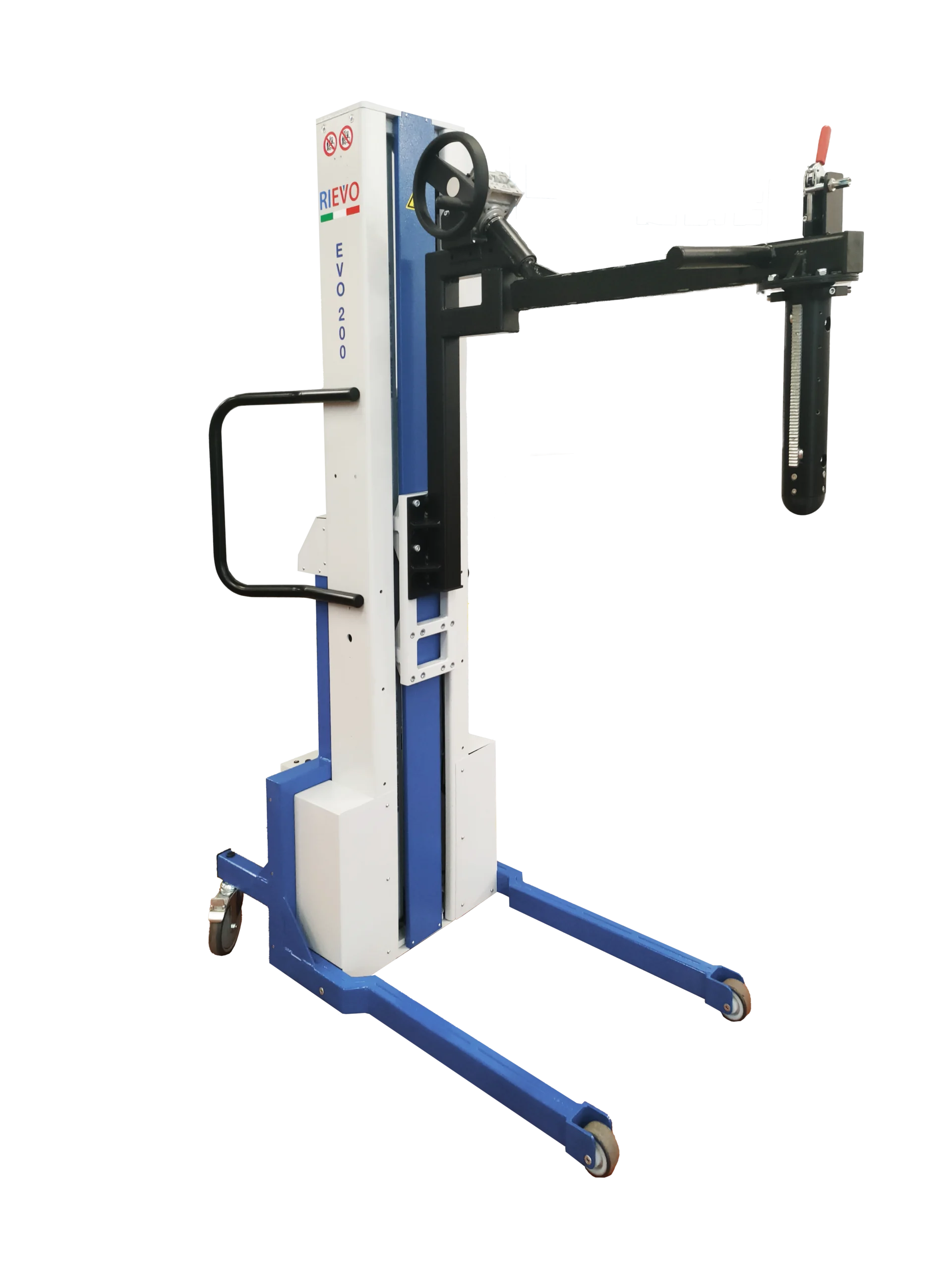

EVO200 electric industrial lift 200kg

Rievo EVO200 hoist for handling medium loads up to 200 kg.

Designed for medium and repetitive loads, EVO200 is distinguished by its robustness and efficiency. With its twin-column design, it can lift loads of up to 200kg while still remaining versatile, safe and maneuverable.

Explore all compatible components:

TECHNICAL DATA.

Maximum load capacity: 200 kg
Steel and aluminum frame to ensure strength while providing great lightness and maneuverability
Trolley weight, without accessories: from 112 kg approx. to 117 kg approx.
Motorized up and down (speed of 75mm/s) with rubber timing belt and steel strands
Anti-crushing safety device, when descending, on all models
24V power supply (2 batteries 12V 40Ah)
LCD display showing battery charge, voltage and charge percentage
Electronics equipped with “Soft-start” with acceleration ramp in the up and down phase of the lifting accessory to enable more precise positioning
Front legs lowered to facilitate insertion under pallets or similar
Fixed front wheels and pivoting rear wheels with bearings for easy handling and smoothness
Locking device present on the rear wheels
Downhill energy recovery system
Autonomy of at least 100 ascent and descent cycles at maximum flow rate
Full recharge in 10 hours via included battery charger No oils, grease for internal mechanisms
Absence of Teflon components on board the machine
Internal safety fuse for system protection in case of malfunction, accessible from outside
Equipment supplied with the machine: use and maintenance booklet, CE certification, list of checks carried out during testing, 220V external battery charger
